Corvus Gold Reports Results from New Western Zone (NWSB & Swale), North Bullfrog Project
February 23, 2017
|Highlights:||NB-17-329: 38.1m @ 0.97 g/t Gold|
|NB-16-322: 18.3m @ 0.91 g/t Gold & 16.8m @ 0.98 g/t Gold|
|NB-17-331: 24.4m @ 0.81 g/t Gold|
|NB-17-330: 30.5m @ 0.78 g/t Gold|
|NB-16-325: 19.8m @ 0.73 g/t Gold|
Vancouver, B.C… Corvus Gold Inc. (“Corvus” or the “Company”) - (TSX: KOR, OTCQX: CORVF) announces the results from nine holes in the new Western Zone, which is a combination of the previously described NWSB and Swale targets, and lies immediately west of the Company’s Sierra Blanca-YellowJacket resource (Figure 1). Results continue to outline an extensive zone of near surface gold mineralization with all holes returning broad intercepts near the current open pit resource. Drill hole NB-17-329 intercepted 91.4 metres @ 0.52 g/t gold including a higher grade stockwork vein intercept of 38.1 metres @ 0.97 g/t gold (Table 1). There are 10 holes pending from the Western Zone from this current phase of drilling.
In addition, the last three holes from the Liberator Zone were returned with continued broad zones of moderate grade mineralization up dip from previous intercepts (NB-16-322 with 13.7m @ 0.74 g/t gold at about 120m from the surface). The Liberator Zone converges with the YellowJacket structural zone near surface at a depth of about 30 metres. These holes continue to outline the large Liberator structural zone which hosts broad low-grade mineralization and currently three higher grade chutes.
Jeff Pontius, President and CEO of Corvus said, “The initial results from our drilling on the Western side of the Sierra Blanca deposit have returned broad zones of shallow higher grade mineralization and highlights our expansion potential. This new zone is extensive in strike length and we believe there may be other parallel mineralized bodies to the west under shallow pediment cover. As with the early exploration of new gold deposits, every hole brings greater understanding of the system’s potential. The North Bullfrog system is emerging as a very large deposit and our drilling program is now moving to test 5 “New Discovery” targets.”
Figure 1. Phase 2 drill hole location map
Phase II Drill Results - Liberator and Western Zones
(Reported drill intercepts are not true widths. At this time, there is insufficient data with respect to the shape of the mineralization to calculate its true orientation in space.)
|From (m)||To (m)||Length (m)*||Gold (g/t)||Silver (g/t)|
|AZ 360 dip-90 inc||115.82||121.92||6.1||0.50||0.71|
|Hole ended in gold mineralization|
|AZ 270 dip-65||146.3||213.36||67.06||0.44||0.88|
|Hole ended in gold mineralization|
|AZ 265 dip-65||134.11||175.26||41.15||0.46||0.85|
|AZ 85 dip-75 inc||73.15||91.44||18.29||0.91||1.57|
|AZ 135 dip-50 inc||108.2||111.25||3.05||1.17||0.38|
|AZ 85 dip-55 inc||140.21||144.78||4.57||0.61||0.87|
|AZ 85 dip-55 inc||143.26||149.35||6.09||0.61||0.96|
|Hole ended in gold mineralization|
|NB-16-327||Water well hole, No Significant Intercepts|
|AZ 85 dip -55 inc||172.21||176.78||4.57||0.70||1.66|
|AZ 90 dip-55 inc||88.39||126.49||38.1||0.97||2.77|
|Hole ended in gold mineralization|
|AZ 85 dip-55||80.77||153.92||73.15||0.51||1.17|
|AZ 85 dip -55 inc||99.06||123.44||24.38||0.81||1.60|
|* Mineralized thickness calculated @ 0.10 g/t Au cutoff with internal intervals calculated @ 1.0 g/t Au cutoff|
The mineralization intersected in the Western Zone is controlled by a large northeast trending structural zone which can be tracked for a strike length of nearly 1.5 kilometres. This zone hosts disseminated and stockwork related higher grade gold mineralization along its length. Drilling to date is defining a contiguous shape to this higher-grade zone that will be modeled in a new resource update later this year. The depth extent of this mineralization has yet to be assessed as well as a potential new, sub parallel zone to the west as illustrated by the interval intersected near the top of hole NB-17-329 (38.1m @ 0.97 g/t gold). Mineralization at the Western Zone is associated with distinct highly altered dikes intruding the Sierra Blanca Tuff.
At the north end of the NE trending Western Zone at the intersection with the YellowJacket and Liberator systems, a large rhyolite intrusive body occurs covering an area of one kilometre by half a kilometre. This rhyolite body hosts broad zones of low-grade gold mineralization, as well as structurally controlled higher grade mineralization near the margins. This rhyolite body may have an important genetic relationship to the larger North Bullfrog gold system and important implication for deep targets below the current gold deposit. There is strongly elevated molybdenum (100-2800 ppm), uranium and zinc associated with gold mineralization within and adjacent to the rhyolite dome feature (Figure 2). The alteration and mineralization of the rhyolite body is characteristic of a high-level porphyry environment with potential at depth.

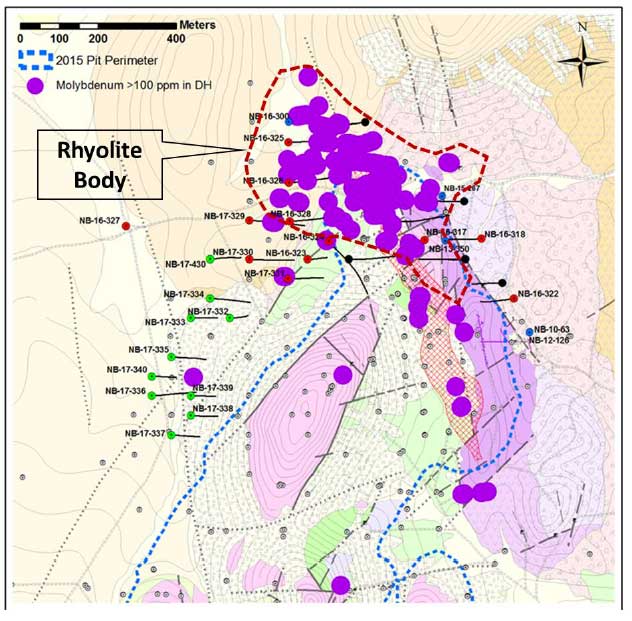

Figure 2. Map of elevated Molybdenum and Rhyolite intrusive at the north end of the Sierra Blanca-YellowJacket deposit, North Bullfrog Project
District New Discovery Program
Drilling has now begun on 5 “New Discovery” type targets in the District which include: North Jolly Jane, Connection, Cat Hill, Jim Dandy, East Savage Vein and Deep Savage. These are exciting targets with initial recon drilling results that are being followed up with fence drilling to target feeder structures.
About the North Bullfrog Project, Nevada
Corvus controls 100% of its North Bullfrog Project, which covers approximately 72 km² in southern Nevada. The property package is made up of a number of private mineral leases of patented federal mining claims and 865 federal unpatented mining claims. The project has excellent infrastructure, being adjacent to a major highway and power corridor as well as a large water right.
The North Bullfrog project includes numerous prospective gold targets at various stages of exploration with four having NI 43-101 mineral resources (Sierra Blanca, Jolly Jane, Mayflower and YellowJacket). The project contains a measured mineral resource of 3.86 Mt at an average grade of 2.55 g/t gold and 19.70 g/t silver, containing 316.5k ounces of gold and 2,445k ounces of silver, an indicated mineral resource of 1.81 Mt at an average grade of 1.53 g/t gold, and 10.20 g/t silver, containing 89.1k ounces of gold and 593.6k ounces of silver and an inferred resource of 1.48 Mt at an average grade of 0.83 g/t gold and 4.26 g/t silver, containing 39.5k ounces of gold and 202.7k ounces of silver for oxide mill processing. The mineral resource for the mill process was defined by WhittleTM optimization using all cost and recovery data and a breakeven cut-off grade of 0.52 g/t gold. In addition, the project contains a measured mineral resource of 0.3 Mt at an average grade of 0.25 g/t gold and 2.76 g/t silver, containing 2.4k ounces of gold and 26.6k ounces of silver, an indicated mineral resource of 22.86 Mt at an average grade of 0.30 g/t gold and 0.43 g/t silver, containing 220.5k ounces of gold and 316.1k ounces of silver and an inferred mineral resource of 176.3 Mt at an average grade of 0.19 g/t gold and 0.67 g/t silver, containing 1,077.4k ounces of gold and 3,799.2k ounces of silver for oxide, heap leach processing. The mineral resource for heap leach processing was defined by WhittleTM optimization using all cost and recovery data and a breakeven cut-off grade of 0.15 g/t.
Qualified Person and Quality Control/Quality Assurance
Jeffrey A. Pontius (CPG 11044), a qualified person as defined by National Instrument 43-101 - Standards of Disclosure for Mineral Projects (“NI 43-101”), has supervised the preparation of the scientific and technical information that forms the basis for this news release and has approved the disclosure herein. Mr. Pontius is not independent of Corvus, as he is the CEO & President and holds common shares and incentive stock options.
Carl E. Brechtel, (Nevada PE 008744 and Registered Member 353000 of SME), a qualified person as defined by NI 43-101, has coordinated execution of the work outlined in this news release and has approved the disclosure herein. Mr. Brechtel is not independent of Corvus, as he is the COO and holds common shares and incentive stock options.
The work program at North Bullfrog was designed and supervised by Mark Reischman, Corvus Gold’s Nevada Exploration Manager, who is responsible for all aspects of the work, including the quality control/quality assurance program. On-site personnel at the project log and track all samples prior to sealing and shipping. Quality control is monitored by the insertion of blind certified standard reference materials and blanks into each sample shipment. All resource sample shipments are sealed and shipped to ALS Chemex in Reno, Nevada, for preparation and then on to ALS Chemex in Reno, Nevada, or Vancouver, B.C., for assaying. ALS Chemex’s quality system complies with the requirements for the International Standards ISO 9001:2000 and ISO 17025:1999. Analytical accuracy and precision are monitored by the analysis of reagent blanks, reference material and replicate samples. Finally, representative blind duplicate samples are forwarded to ALS Chemex and an ISO compliant third party laboratory for additional quality control.
For additional information on the North Bullfrog project, including information relating to exploration, data verification and the mineral resource estimates, see “Technical Report and Preliminary Economic Assessment for Combined Mill and Heap Leach Processing at the North Bullfrog Project, Bullfrog Mining District, NYE County, Nevada” dated June 16, 2015 as amended and restated May 18, 2016 which is available under Corvus’ SEDAR profile at www.sedar.com.
About Corvus Gold Inc.
Corvus Gold Inc. is a North American gold exploration and development company, focused on its near-term gold-silver mining project at North Bullfrog, Nevada. In addition, the Company controls a number of royalties on other North American exploration properties representing a spectrum of gold, silver and copper projects. Corvus is committed to building shareholder value through new discoveries and the expansion of those discoveries to maximize share price leverage in a recovering gold and silver market.
